Crimping 16Pins Slim Standard Inserts

Name: Crimping 16Pins Slim Standard Inserts
Brand: ZJHK
Price: 2.67 USD

China Crimping 16Pins Slim Standard Inserts wholesale

Delivery Time : 5~7 work days

Price : $2.67/$2.5/$2.33

Voltage : 250V

Brand Name : ZJHK

Model Number : HA-016-MC/HA-016-FC

Rated Current : 16A

Certification : UL,COC,CE,UKCA,SGS,EAC,RoHS

Payment Terms : T/T

Gender : Male/Female

Operatingtemperaturerange : -40°C to +125°C

Number Of Contacts : 16

Housing : H16A Series

Place of Origin : China

MOQ : 5pcs/30pcs/50pcs

Part Number : 09200163001/09200163101

Contact Now

Crimping 16Pins Slim Standard Inserts

HA-016 is part of the HA heavy-duty connector series featuring crimp terminal termination that delivers stable electrical performance without heating. The joint is robust and withstands severe vibration, shock, elevated temperature and corrosion, making it ideal for harsh industrial environments. Rated at 16 A, it serves packaging, textile, automation and wind-power applications.

Technical Parameters

Specifications	Values
Number of contacts	16
Rated Current	16A
Rated Voltage	250V
Rated Impulse Voltage	4kV
Pollution Degree	3
Pollution Degree2 Also	16A 230/400V 4kV 2
Rated Voltage Acc.to UL Csa	600V
Insulation Resistance	≥1010Ω
Material	Polycarbonate
Compatible Housing Size	16A

Products Drawings

HA-016-MC

HA-016-FC

Products Overview

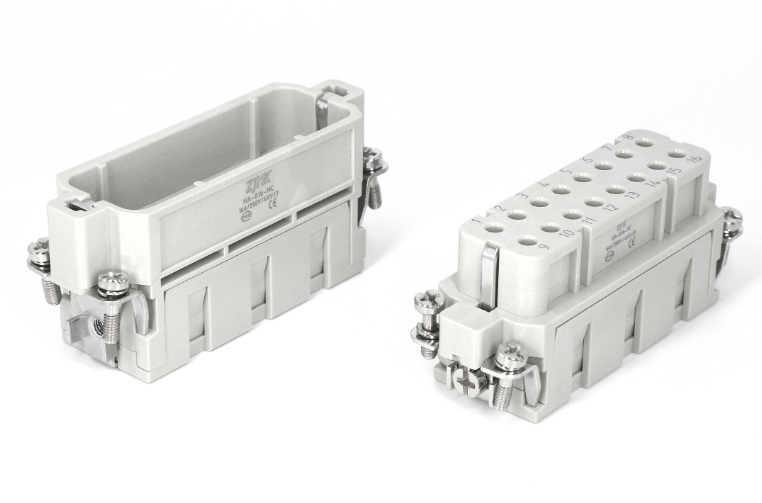

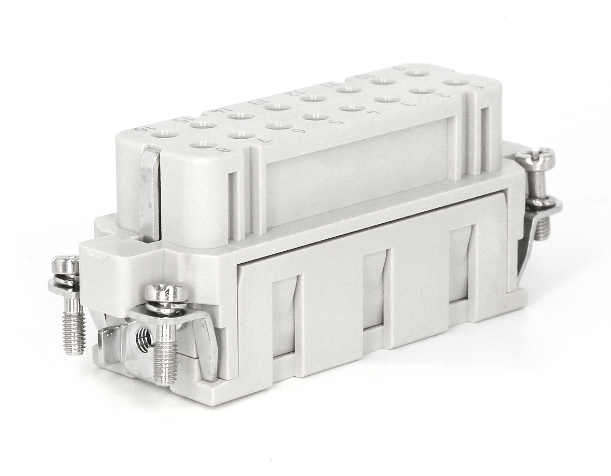

The product features numerically sequenced termination chambers for precise pin assignment. The mating male crimp pins are securely locked in place by an integrated internal retention mechanism. Additionally, the side metal components and their screws are assembled through a combination of in-house automated machinery and manual processes.The image shows a matching pair of male and female inserts. Both require the use of separate crimp pins. The offset protruding structure on the side serves as a polarizing feature to prevent mismating. Compared to other connection methods, the crimp termination offers superior mechanical stability and reliability.

THE MATCHING CRIMP CONTACTS

Crimping 16Pins Slim Standard Inserts

Silver Plated 16A Male Crimp Contacts Silver Plated 16A Female Crimp Contacts Gold Plated 16A Female Contacts Gold Plated 16A Female Contact

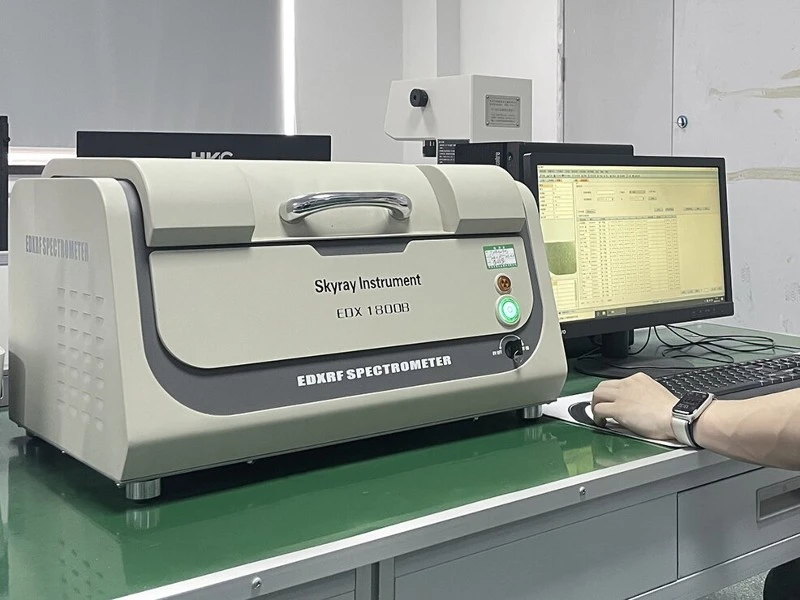

TEST EQUIPMENT & PRODUCTION

Crimping 16Pins Slim Standard Inserts

DC Temperature Rise Test: This test monitors conductor temperature under load to determine safe current capacity. As current increases, resistive heating causes temperature rise, reducing ampacity. The evaluation considers conductor size, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.

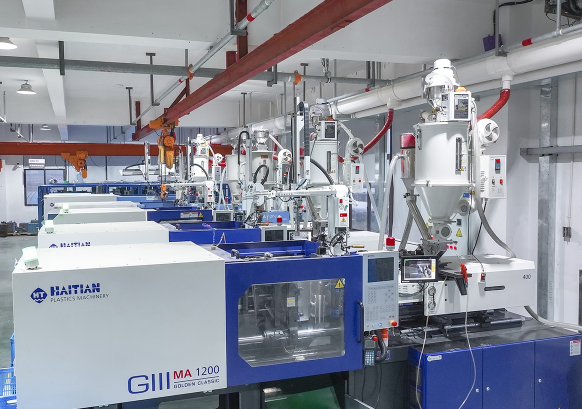

Precision Automation for Superior Quality: The production of these screw-lock inserts is conducted on a fully automated line, which ensures exceptional consistency. Key steps include: the precise insertion of conductive pins into the plastic component with ±0.01 mm accuracy; the automated fastening of screws on both core rows to guarantee reliable connections; and the final assembly of the metal shell and side plate. This integrated process guarantees precise dimensions and uniform high quality.
