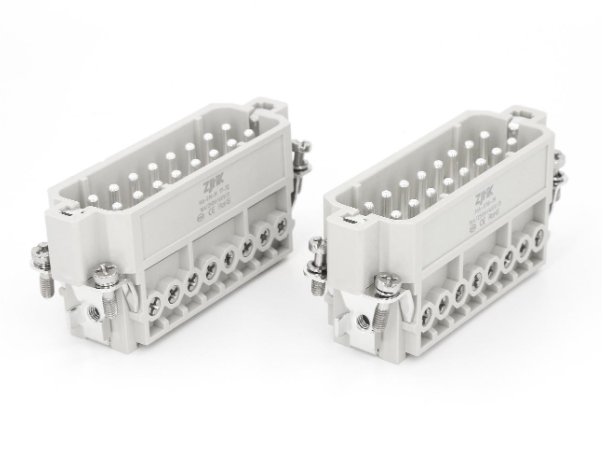

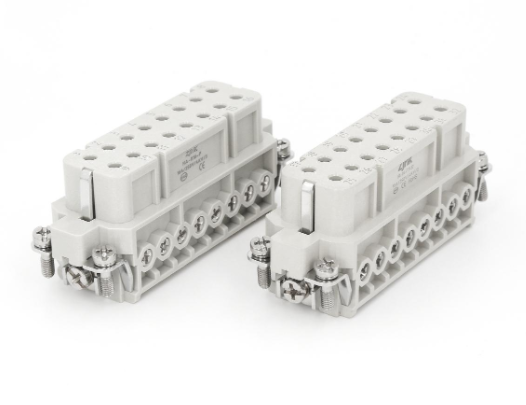

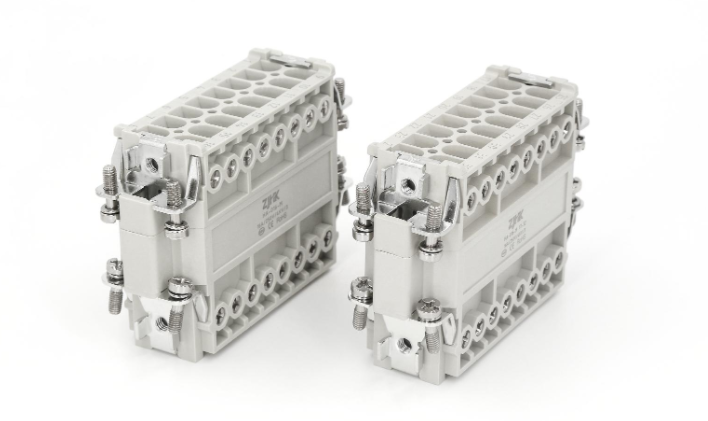

32Pins 16A Screw Slim Insert
The HA-032 series inserts feature a compact structure with 32 densely arranged wires and side-positioned grounding terminals. The electrical transmission system comprises 32 silver-plated pins, organized as two independent 16-pin connectors with distinct numbering for easy identification. Available in both universal and unmarked versions for broad compatibility with mainstream connectors, this design maximizes space utilization while ensuring reliable equipment performance.
Technical Specifications
| Specifications |
Values |
| Standards |
DIN EN 60 664/DIN EN 61 984 |
| Number of contacts |
32 |
| Rated Current |
16A |
| Rated Voltage |
250V |
| Rated Impulse Voltage |
4kV |
| Pollution Degree |
3 |
| Pollution Degree 2 Also |
16A 230/400V 4kV 2 |
| Rated Voltage According to UL CSA |
600V |
| Limiting Temperature |
-40℃...+125℃ |
| Matching Housings |
32A Series |
Product Drawings

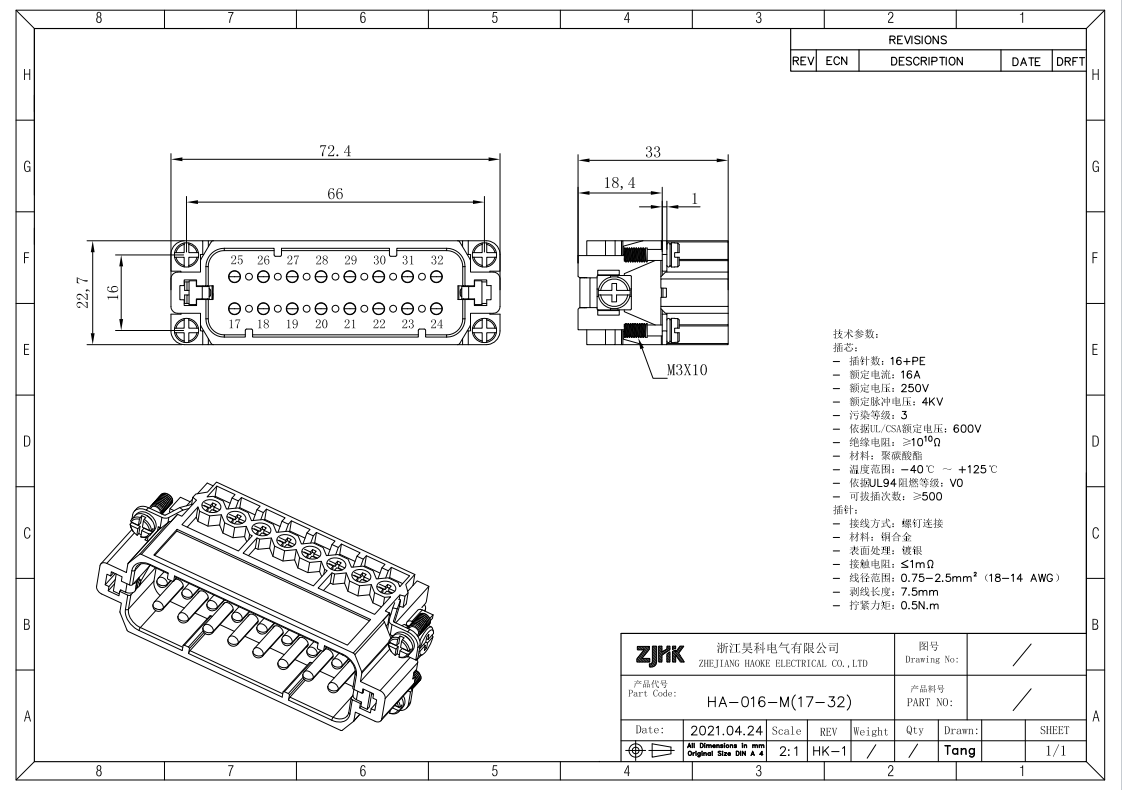

HA-016-M(17~32)
HA-016-F(17-32)
Product Overview
The HA-032 series inserts consist of two 16-pin chips with distinct identification numbers for clear differentiation. Plastic components are manufactured from imported polycarbonate (PC) material, providing excellent resistance to harsh environmental conditions.
Professional Testing Equipment
DC Temperature Rise Test
This analysis assesses conductor operating temperatures to establish maximum permissible current limits. Elevated current levels generate resistive heating, causing temperature increases and reduced current-carrying capacity. The evaluation incorporates conductor geometry, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
Application Scenarios
Transportation
Heavy duty connectors employed in rail transit integrate power supply, control signals, data communication, and braking functions into modular units, offering efficient plug-and-play solutions. They ensure reliable operation in critical traction and signaling systems, even under demanding environmental conditions. The design simplifies installation, enhances durability, and complies with rigorous industry standards, delivering full functionality through compact and robust interfaces.
Company Introduction
Certified Heavy-Duty Connectivity Solutions

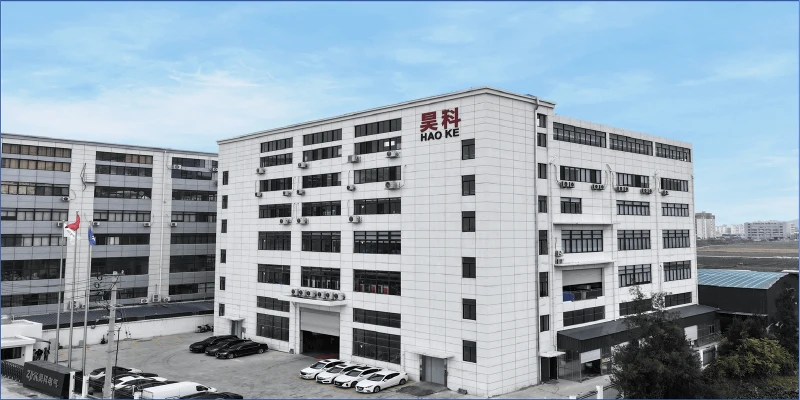

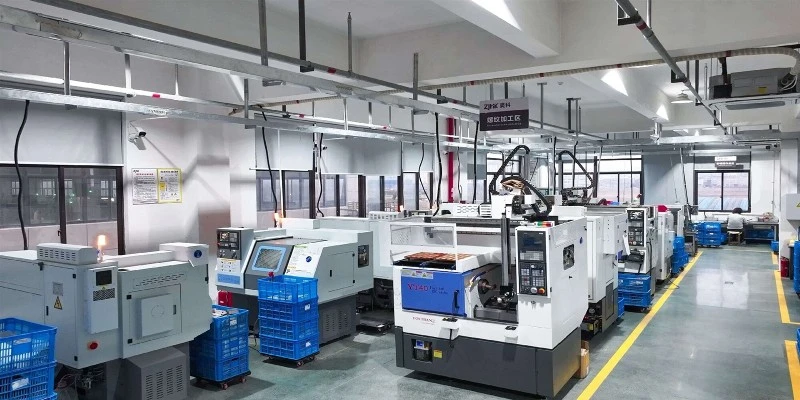

Zhejiang Haoke Electric Co., Ltd. is a technology-driven manufacturer specializing in heavy-duty electrical connectors. Our integrated capabilities span R&D, fully automated production lines, and worldwide certification, ensuring every product meets the highest standards.
Global Expertise & Product Portfolio
Led by a team of ten-plus certified engineers and supported by dozens of intelligent manufacturing systems, we deliver thousands of configurations across the HA, HE, HEE, HD, HDD, and HSB series. All products are UL-, CQC-, CE-, UKCA-, and EAC-certified, providing highly reliable, stable, and customizable solutions to leading international enterprises.
Authorized Certification
After years of efforts, we have accumulated a wide variety of certificates
Frequently Asked Questions
Do you produce the goods yourselves, or do you source them from suppliers?
We have our own factory in Wenzhou City, Zhejiang Province, China.
How long is your warranty time?
12 months. Any quality problems are resolved with replacements in your next order free of charge.
What's your advantage compared with Harting, ILME, TE?
Our HDC connectors can perfectly replace Harting, ILME, and TE (SIBAS) products. Most clients who previously used these brands have chosen us after testing. Additionally, our pricing is 40-50% lower than Harting.
If I want some regular products, do you have any stock in the warehouse?
Most models are in stock, and order quantity is unlimited. We also welcome small orders.
