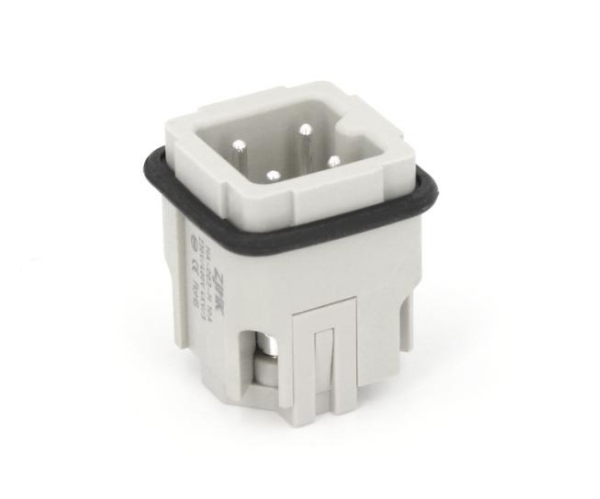

3Pins 10A Compact Standard Connector

Place of Origin : China

Payment Terms : T/T

Price : $1.47/$1.38/$1.28

Protectionrating : IP65

Housing : H3A Series

Number of Contacts : 3

Inserts : Polycarbonate 3412 ECR

Currentrating : 10A

Operating Temperaturerange : -40°C to +125°C

Model Number : HA-003-M/HA-003-F

Durability : 200 Times Plug in and out

Certification : UL,COC,CE,UKCA,SGS,EAC,RoHS

Connection Type : Screw Terminals

Brand Name : ZJHK

MOQ : 5pcs/30pcs/50pcs

Connector Type : Standard Connector

Delivery Time : 5~7 work days

Order Number : 09200032611/09200032711

Contact Now

3Pins 10A Compact Standard Connector
High-performance compact connector designed for efficient power transmission in limited spaces.
3Pins 10A Compact Standard Connector 3Pins 10A Compact Standard Connector
Technical Specifications
SpecificationsDIN EN 60 664/DIN EN 61 984
Number of contacts3
GenderMale/Female
Rated Current10A
Rated Voltage Conductor-ground230V
Rated Voltage Conductor-conductor400V
Rated Impulse Voltage4kV
Pollution Degree3
Rated Voltage Acc.to UL Csa600V
Insulation Resistance≥1010Ω
MaterialPolycarbonate
Limiting Temperature-40℃...+125℃
Flammability Acc.to UL94V0
Mechanical Working Life-mating Cycles≥500
ContactsCopper Alloy
MaterialHard-silver Plated
Contact Resistance≤1mΩ
Wire Gauge1.0-2.5mm²
AWG18-14
Tightening Torque0.25Nm
Product Drawings
Female Insert HA-003-F
3Pins 10A Compact Standard Connector
Male Insert HA-003-M
3Pins 10A Compact Standard Connector
Product Overview
3Pins 10A Compact Standard Connector
The slim series inserts enable connection of 3 wires in compact spaces. This configuration includes 4 pins: 3 for current transmission and 1 for grounding. This product series offers perfect compatibility with Harting 3A series connectors.
Key Advantages:
  • Efficiently increases installation flexibility
  • Widely applicable across multiple industrial sectors
  • Compact design for space-constrained applications
  • Full compatibility with Harting 3A series
Workshops & Applications
3Pins 10A Compact Standard Connector 3Pins 10A Compact Standard Connector
Our company manages the complete production process internally with automated manufacturing systems. We produce a comprehensive range of 3A series products, widely used in hot runner machines for plastic components, contacts, and metal hoods across various industrial applications.
Manufacturer Profile
Zhejiang Haoke Electric Co. Ltd.
3Pins 10A Compact Standard Connector
We are a leading manufacturer of high-performance connectors, dedicated to innovation and quality excellence. With a robust R&D center and smart production base, we provide customized electric connection systems specifically for the hot runner industry.
Company Commitment: "Customer-first, mutual success" philosophy driving partnerships with Fortune 500 companies and global certification compliance including UL, CQC, CE, UKCA, and EAC. Our products are extensively exported to European and American markets.
HAOKE ELECTRIC - Powering the hot runner industry with advanced connection technology and reliable electrical solutions.
